Introduction II: HPC and job scheduler

Defining high-performance computing

The simplest way of defining high-performance computing is by saying that it is the using of high-performance computers (HPC). However, this leads to our next question what is a HPC .

HPC

A high-performance computer is a network of computers in a cluster that typically share a common purpose and are used to accomplish tasks that might otherwise be too big for any one computer.

While modern computers can do a lot (and a lot more than their equivalents 10-20 years ago), there are limits to what they can do and the speed at which they are able to do this. One way to overcome these limits is to pool computers together to create a cluster of computers. These pooled resources can then be used to run software that requires more total memory, or need more processors to complete in a reasonable time.

One way to do this is to take a group of computers and link them together via a network switch. Consider a case where you have five 4-core computers. By connecting them together, you could run jobs on 20 cores, which could result in your software running faster.

HPC architectures

Most HPC systems follow the ideas described above of taking many computers and linking them via network switches. described above is:

What distinguishes a high-performance computer from the computer clusters

• The number of computers/nodes
• The strength of each individual computer/node
• The network interconnect – this dictates the communication speed between nodes. The faster this speed is, the more a group of individual nodes will act like a unit.

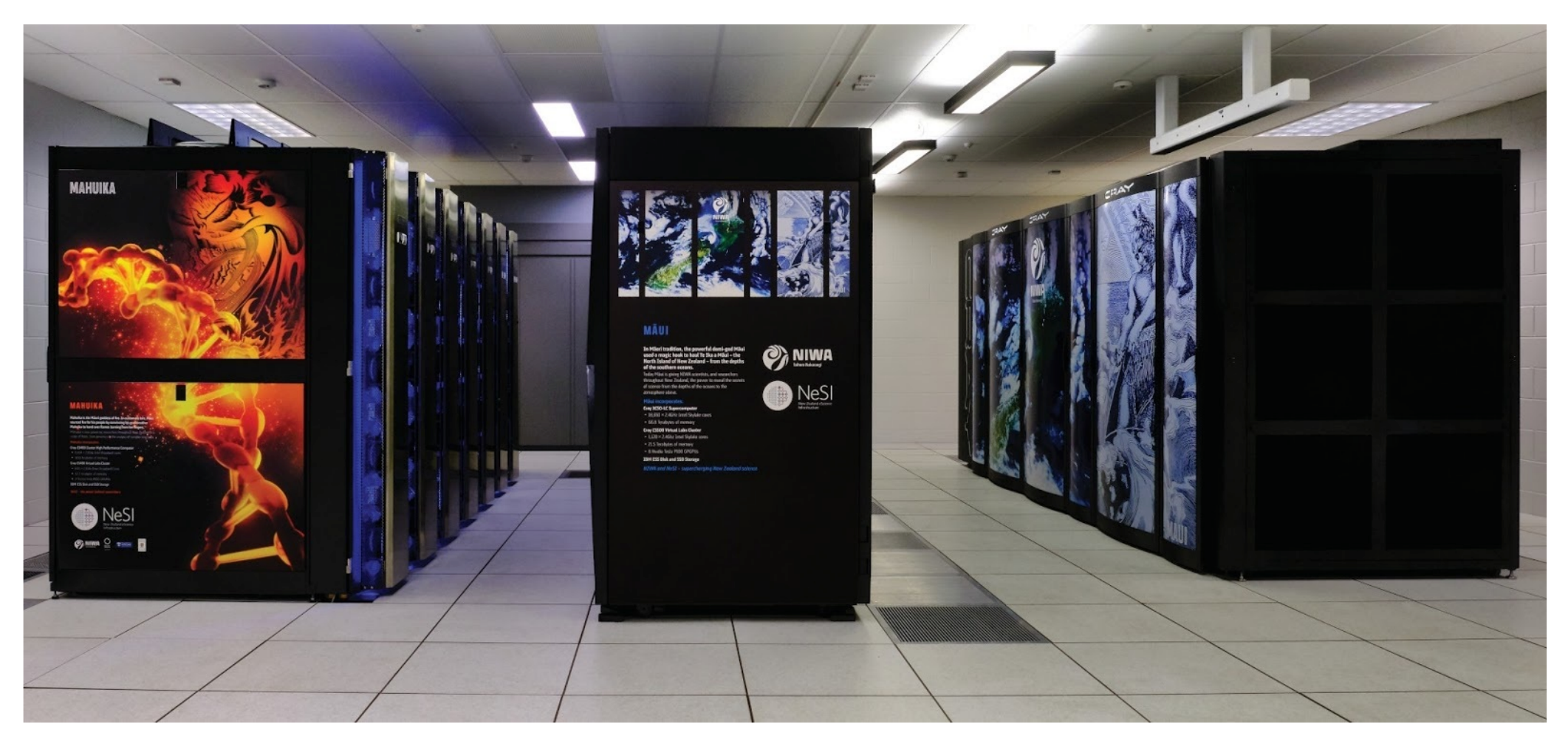

NeSI Mahuika Cluster architecture

NeSI Mahuika cluster (CRAY HPE CS400) system consists of a number of different node types. The ones visible to researchers are:

• Login nodes
• Compute nodes

Overview of HPC ArchitectureComposition of a nodeIn reality

Jupyter Terminal

• Jupyter terminal should be treated as a login node. .i.e. Just like what we have done so far; use it to develop, test and debug scripts but do not to deploy the production level workflow interactively.

From Hardware to Software

Over 90% HPCs & supercomputers employ Linux as their operating system. Linux has four essential properties which make it an excellent operating system for the HPCs & science community:

PerformanceFunctionalityFlexibilityPortability

Performance of the operating system can be optimized for specific tasks such as running small portable devices or large supercomputers.

A number of community-driven scientific applications and libraries have been developed under Linux such as molecular dynamics, linear algebra, and fast-Fourier transforms.

The system is flexible enough to allow users to build applications with a wide array of support tools such as compilers, scientific libraries, debuggers, and network monitors.

The operating system, utilities, and libraries have been ported to a wide variety of devices including desktops, clusters, supercomputers, mainframes, embedded systems, and smart phones.

Supplementary : The Linux operating system is made up of three parts; the kernel, the shell and the software

Kernel − The kernel is the heart of the operating system. It interacts with the hardware and most of the tasks like memory management, task scheduling and file management.

Shell − The shell is the utility that processes your requests (acts as an interface between the user and the kernel). When you type in a command at your terminal, the shell interprets (operating as in interpreter) the command and calls the program that you want. The shell uses standard syntax for all commands. The shell recognizes a limited set of commands, and you must give commands to the shell in a way that it understands: Each shell command consists of a command name, followed by command options (if any are desired) and command arguments (if any are desired). The command name, options, and arguments, are separated by blank space.

• An interpreter operates in a simple loop: It accepts a command, interprets the command, executes the command, and then waits for another command. The shell displays a "prompt," to notify you that it is ready to accept your command.

Accessing software via modules

On a high-performance computing system, it is quite rare that the software we want to use is available when we log in. It is installed, but we will need to “load” it before it can run.

Before we start using individual software packages, however, we should understand the reasoning behind this approach. The three biggest factors are:

• software incompatibilities
• versioning
• dependencies

One of the workarounds for this issue is Environment modules. A module is a self-contained description of a software package — it contains the settings required to run a software package and, usually, encodes required dependencies on other software packages.

There are a number of different environment module implementations commonly used on HPC systems and the one used in NeSI Mahuika cluster is Lmod where the module command is used to interact with environment modules.

Viewing, Accessing and Deploying software with module command

• View available modules

#View all modules
$ module avail

# View all modules which match the keyword in their name
$ module avail KEYWORD

# View all modules which match the keyword in their name or description
$ module spider KEYWORD

• Load a specific program

  All module names on NeSI Software stack have a version and toolchain/environment suffixes. If none is specified, then the default version of the software is loaded. The default version can be seen with the module avail modulename command (corresponding module name will have (D) suffix)

$ module load Module_Name

• Unload all current modules

$ module purge

Please do not use module --force purge

• Swap a currently loaded module for a different one

$ module switch CURRENT_MODULE DESIRED_MODULE

Demo - Use of login node and modules

• Navigate to hpc-and-slurm directory

  cd ~/mgss/hpc-and-slurm


• Run ls -F command to list the file/directories in this directory. There are four files and a directory

  blast.slurm*  Exercise/  mm-first.faa  mm-protein.faa  mm-second.faa


• mm-protein.faa is a mouse RefSeq protein data set with 64,599 sequences.. mm-first.faa and mm-second.faa are subsets of mm-protein.faa
  • mm-first.faa contains the first two sequences whereas mm-second.faa has the first 96 sequences.
  • Let's BLAST these two sequences against the swissprot databae ( technically, we should be using refseq_protein database for this but it is substantially larger than swissprot .i.e. Not suitable for a quick demo)
    load modules

    module purge
    module load BLASTDB/2023-07
    module load BLAST/2.13.0-GCC-11.3.0


    This will take ~ 10 seconds

    blastp -query mm-first.faa -db swissprot


    This will take ~3.5 minutes

    blastp -query mm-second.faa -db swissprot


• Runtime for mm-second.faa is starting to demonstrate the limitation of running this query interactively on "login node". If we want to query mm-protein.faa which has 54503 more sequences than mm-second.faa, we will need access to more compute resources (Compute nodes) and ideally a non-interacive method where we don't have to leave the desktop/laptop on. In other words, a "Remote" mechanism
• Both of these problems can be solved with the help of a HPC "Scheduler"

Working with job scheduler

An HPC system might have thousands of nodes and thousands of users. How do we decide who gets what and when? How do we ensure that a task is run with the resources it needs? This job is handled by a special piece of software called the scheduler. On an HPC system, the scheduler manages which jobs run where and when. In brief, scheduler is a

• Mechanism to control access by many users to shared computing resources
• Queuing / scheduling system for users’ jobs
• Manages the reservation of resources and job execution on these resources
• Allows users to “fire and forget” large, long calculations or many jobs (“production runs”)

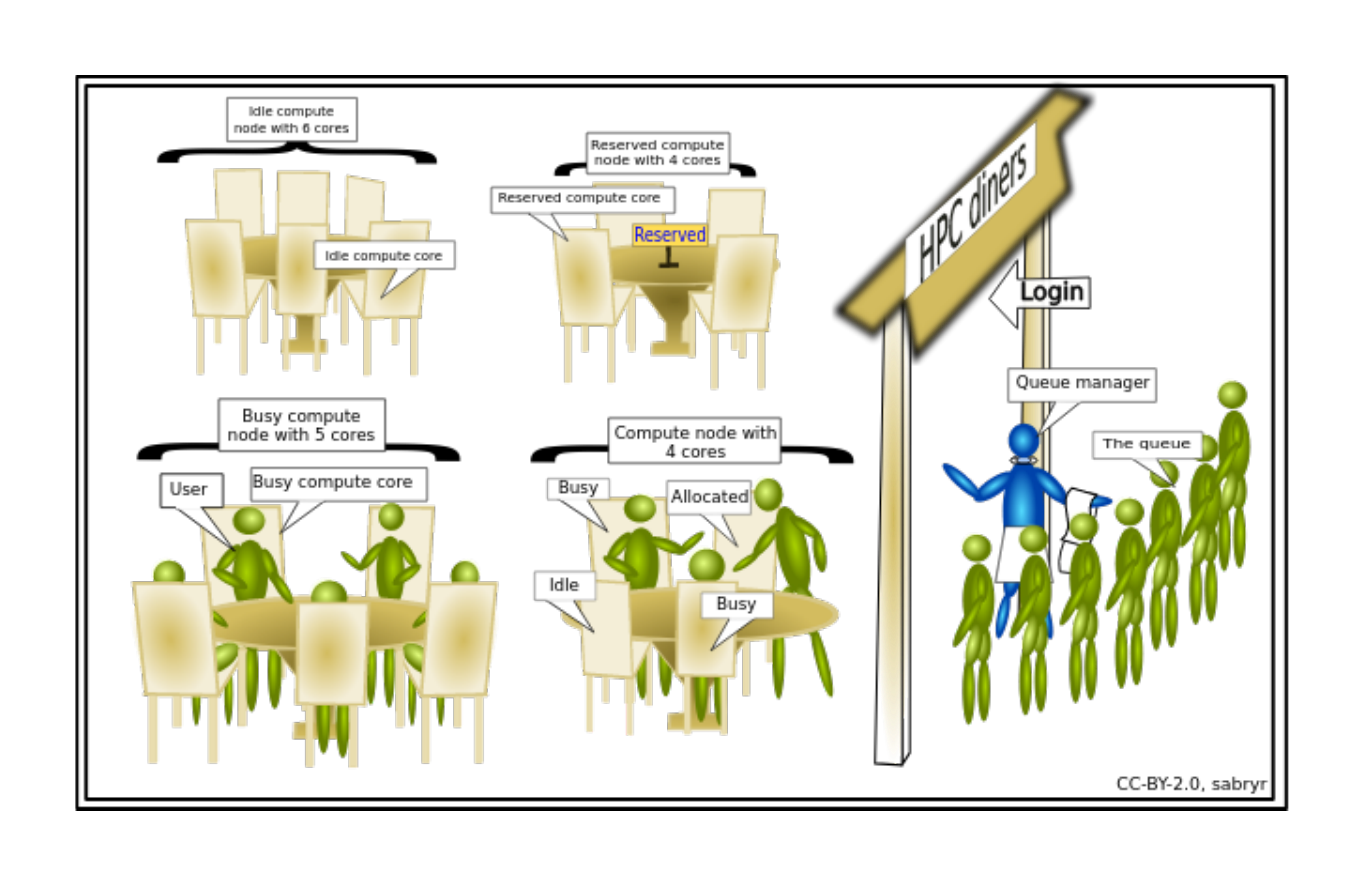

Why do we need a scheduler ?

• To ensure the machine is utilised as fully as possible
• To ensure all users get a fair chance to use compute resources (demand usually exceeds supply)
• To track usage - for accounting and budget control
• To mediate access to other resources e.g. software licenses

Commonly used schedulers

• Slurm
• PBS , Torque
• Grid Engine

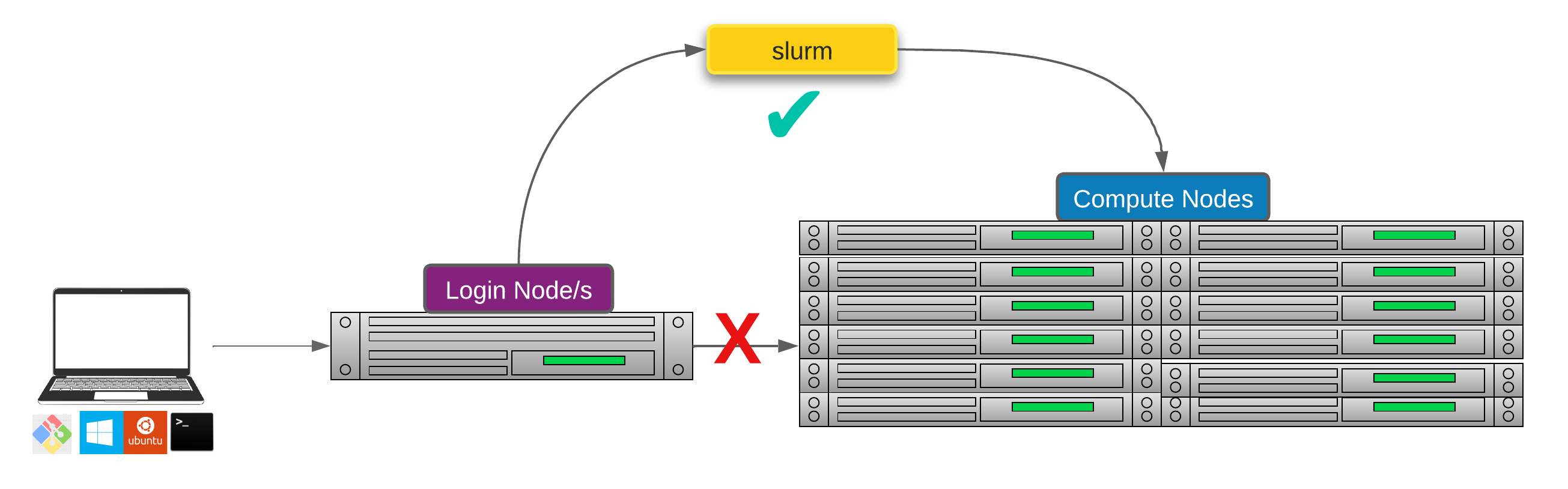

Researchers can not communicate directly to Compute nodes from the login node. Only way to establish a connection OR send scripts to compute nodes is to use scheduler as the carrier/manager

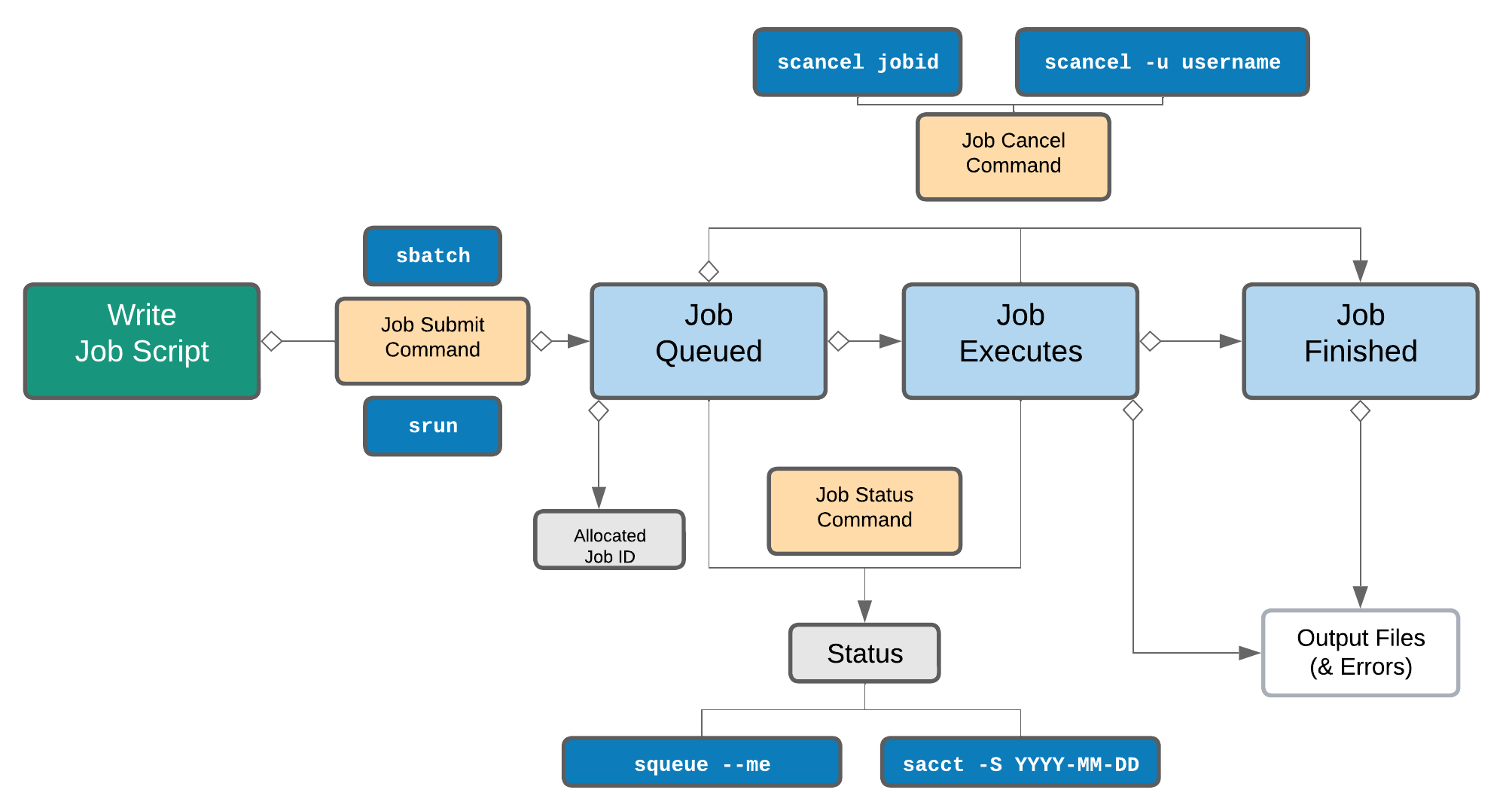

Life cycle of a slurm job

Commonly used Slurm commands

Command	Function
sbatch	Submit non-interactive (batch) jobs to the scheduler
squeue	List jobs in the queue
scancel	Cancel a job
sacct	Display accounting data for all jobs and job steps in the Slurm job accounting log or Slurm database
srun	Slurm directive for parallel computing
sinfo	Query the current state of nodes
salloc	Submit interactive jobs to the scheduler

About

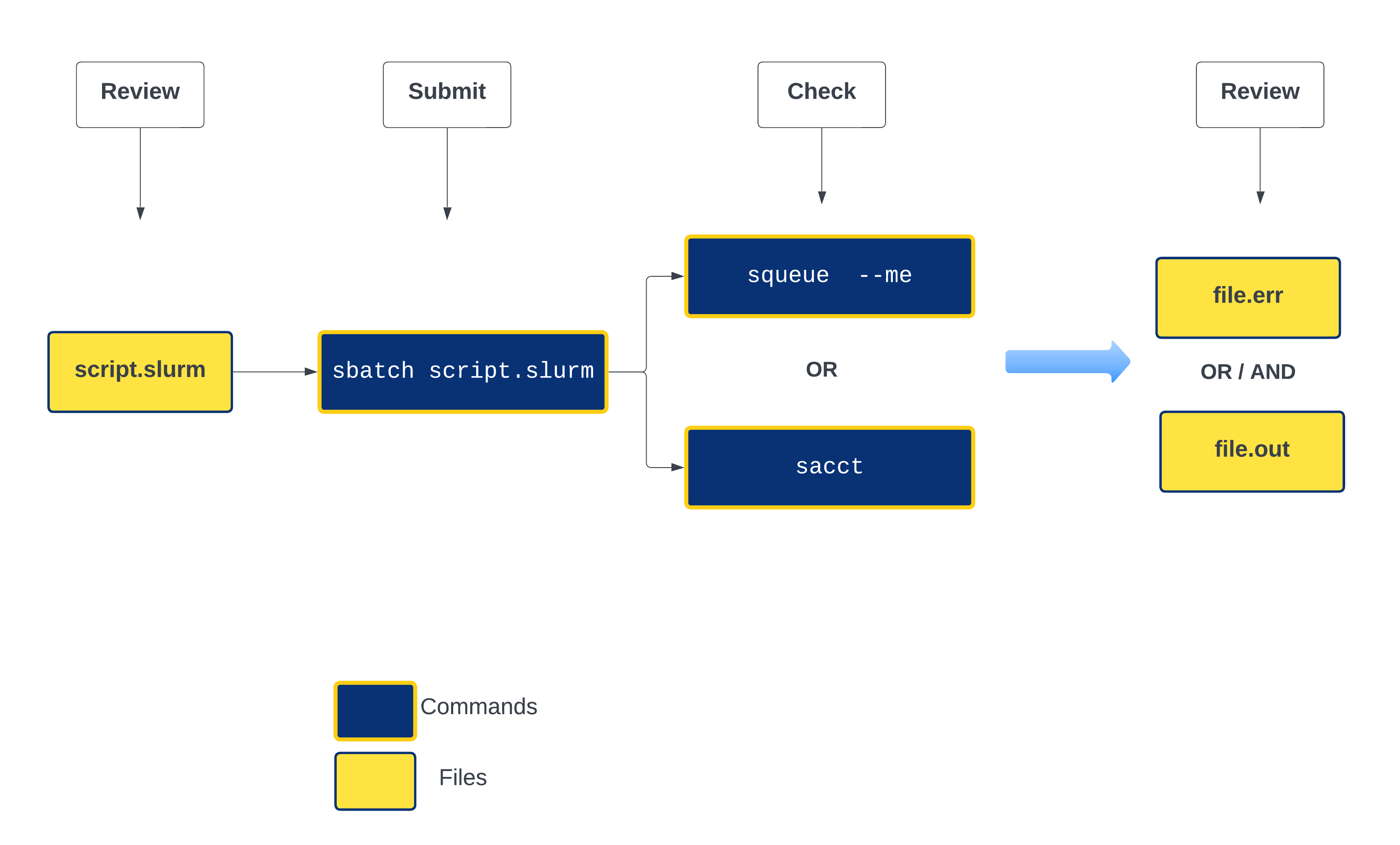

Anatomy of a slurm script and submitting first slurm job 🧐

As with most other scheduler systems, job submission scripts in Slurm consist of a header section with the shell specification and options to the submission command (sbatch in this case) followed by the body of the script that actually runs the commands you want. In the header section, options to sbatch should be prepended with #SBATCH.

Commented lines are ignored by the bash interpreter, but they are not ignored by slurm. The #SBATCH parameters are read by slurm when we submit the job. When the job starts, the bash interpreter will ignore all lines starting with #. This is very similar to the shebang mentioned earlier, when you run your script, the system looks at the #!, then uses the program at the subsequent path to interpret the script, in our case /bin/bash (the program bash found in the /bin directory

---

Slurm variables

header	use	description
--job-name	#SBATCH --job-name=MyJob	The name that will appear when using squeue or sacct.
--account	#SBATCH --account=nesi12345	The account your core hours will be 'charged' to.
--time	#SBATCH --time=DD-HH:MM:SS	Job max walltime.
--mem	#SBATCH --mem=512MB	Memory required per node.
--cpus-per-task	#SBATCH --cpus-per-task=10	Will request 10 logical CPUs per task.
--output	#SBATCH --output=%j_output.out	Path and name of standard output file. %j will be replaced by the job ID.
--mail-user	#SBATCH --mail-user=me23@gmail.com	address to send mail notifications.
--mail-type	#SBATCH --mail-type=ALL	Will send a mail notification at BEGIN END FAIL.
	#SBATCH --mail-type=TIME_LIMIT_80	Will send message at 80% walltime.

Assigning values to Slurm variables

Demo

• Make sure you are in your hpc-and-slurm directory .i.e. cd ~/mgss/hpc-and-slurm/
• Open blast.slurm script with nano OR direct the the File explorer to nobackup_nesi02659 > MGSS_U > YOUR_USERNAME > hpc-and-slurm ( refer to Jupyter File explorer on Supplementary) and double click the file

Review the script and submit it to cluster as below

sbatch blast.slurm

Exercise bowtie-test.slurm Fill in the blanks and submit

• Navigate to Exercise directory

  cd ~/mgss/hpc-and-slurm/Exercise/


• bowtie-test.slurm was compiled to execute a variant calling workflow for a set of reads belong to a lambda virus
• Review the content of bowtie-test.slurm, fill in the missing values for Slurm variables and then the module commands
  • Name of the job/process can be anything. ( highly recommend giving it a "representative" name such as variant-calling OR lambda-variants,etc)
  • 2 CPUs and ~2G of memory is sufficient
  • Runtime will be about 35 seconds but we can assign ~2 minutes for it. ( counting for the overhead and unexpected slowdowns)
  • We can ask Slurm to send an email notification when the job gets started and finished (regardless of the outcome)
  • modules are listed but the command to load them are missing

Submit the script

sbatch bowtie-test.slurm

Optional : Exercise-2

• Time permitting, we will discuss Exercise-2 and GPUs 😊 (not needed for Summer School material)

  cd /mgss/hpc-and-slurm/Exercise-2/
