Virus taxonomy

Objectives

Explore outputs of VirSorter2 and CheckV

Key outputs from VirSorter2 include:

  • mgss-final-viral-combined.fa: FASTA file of identified viral sequences
  • mgss-final-viral-score.tsv: table with score of each viral sequences across groups and a few more key features, which can also be used for further filtering
  • mgss-for-dramv/: files to be used as input to DRAM-v for gene prediction and annotation (we will be running DRAM-v later today during the gene annotation session)

CheckV provides summary outputs for contamination, completeness, repeats, and an overall quality summary. Later today we will have a brief look at some examples of the information you can draw from these CheckV outputs.

Exercise: Examining viral output files from VirSorter2 and CheckV

VirSorter2 and CheckV provide several of different output files that are important for identifying and understanding the viruses present in your data. Explore through the following files:

  • 7.viruses/VirSorter2/mgss-final-viral-score.tsv
  • 7.viruses/checkv_out/quality_summary.tsv

When viewing these files, see if you can find the following information:

  • How many viral contigs did VirSorter2 identify?
  • How many viral contigs meet the "High-quality" (MIUViG) standard?
  • How many might we consider "complete" genomes based on CheckV's completeness estimation?
  • Are any of the identified viral contigs complete circular genomes (based on identifying direct terminal repeat regions on both ends of the genome)? If not, think about why this might be the case for this dataset (hint: the workshop materials are a manufactured "metagenome" data set based on compiling several individual genomes)
  • Are there any suspicious contigs that you might want to flag for closer examination (and/or careful consideration in downstream analyses)? (Note that standard practice would be to use these CheckV results as one basis for filtering to remove potential false positives)

Introduction to vConTACT2 for predicting taxonomy of viral contigs

Even more so than prokaryote taxonomy, establishing a coherent system for viral taxonomy is complex and continues to evolve. In 2020, the International Committee on Taxonomy of Viruses (ICTV) overhauled the classification code into 15 hierarchical ranks. Furthermore, the knowledge gap in databases of known and taxonomically assigned viruses remains substantial, and so identifying the putative taxonomy of viral contigs from environmental metagenomics data remains challenging.

There are a number of approaches that can be used to attempt to predict the taxonomy of the set of putative viral contigs output by programs such as VIBRANT, VirSorter, and VirFinder. vConTACT2 is one such method that uses 'guilt-by-contig-association' to predict the potential taxonomy of viral genomic sequence data based on relatedness to known viruses within a reference database (such as viral RefSeq). The principle is that, to the extent that the 'unknown' viral contigs cluster closely with known viral genomes, we can then expect that they are closely related enough to be able to predict a shared taxonomic rank.

Note

Anecdotally, however, in my own experience with this process I have unfortunately been unable to directly predict the taxonomy of the vast majority of the viral contigs output by VIBRANT, VirSorter, or VirFinder from an environmental metagenomic data set (due to not clustering closely enough with known viruses in the reference database). You can, however, visualise the gene-sharing network generated to infer the likely taxonomy of each of your viruses at higher taxonomic ranks due to the relatedness to known reference viral genomes.

Running vConTACT2 can require a considerable amount of computational resources, and so we won't be running this in the workshop today. The required process is outlined for reference in an Appendix for this exercise, should you wish to experiment with this on your own data in the future.

For today, we have provided some of the output files from this process when applied to our mock metagenome data. A selection of these can be viewed in the folder 7.viruses/vConTACT2_Results/ via head or less.

code

less vConTACT2_Results/genome_by_genome_overview.csv

code

less vConTACT2_Results/tax_predict_table.tsv

A few notes to consider:

  • You will see that the genome_by_genome_overview.csv file contains entries for the full reference database used as well as the input viral contigs (contigs starting with NODE).

  • You can use a command such as grep "NODE" vConTACT2_Results/genome_by_genome_overview.csv | less to view only the lines for the input contigs of interest.

    • Note also that these lines however will not contain taxonomy information.
    • See the notes in the Appendix for further information about why this might be.

  • As per the notes in the Appendix, the tax_predict_table.tsv file contains predictions of potential taxonomy (and or taxonomies) of the input viral contigs for order, family, and genus, based on whether they clustered with any viruses in the reference database.

    • Note that these may be lists of multiple potential taxonomies, in the cases where viral contigs clustered with multiple reference viruses representing more than one taxonomy at the given rank.

    The taxonomies are deliberately enclosed in square brackets ([ ]) to highlight the fact that these are predictions, rather than definitive taxonomy assignments.

Visualising the vConTACT2 gene-sharing network in Cytoscape

We can visualise the gene-sharing network generated by vConTACT2 (c1.ntw) using the software Cytoscape. Cytoscape runs as a GUI (graphical user interface), so we will need to either download and install this software or open Cytoscape using NeSI's Virtual Desktop (instructions can be found here). With our Virtual Desktop open, Cytoscape can then be loaded as follows.

Copy/paste in the Virtual Desktop

You will not be able to copy text from outside the Virtual Desktop and paste into the Virtual Desktop, in which case you will need to manually type these commands.

Open a terminal in Virtual Desktop prior to running code below

code

# Load the module
module purge
module load Cytoscape/3.9.1
# Run cytoscape
Cytoscape

Do not update Cytoscape!

A dialog box will appear telling you about a new version of Cytoscape. Click "close", as we will not be installing any new versions today!

Load the network

  1. With Cytoscape open, click on File \(\rightarrow\) Import \(\rightarrow\) Network from file
  2. Open the c1.ntw file by (a) typing in the absolute path in the File Name box: /nesi/nobackup/nesi02659/MGSS_U/<YOUR FOLDER>/7.viruses/vConTACT2_Results/c1.ntw or (b) navigate to the file using the GUI.

  3. In the Import Network From Table pop-up box:

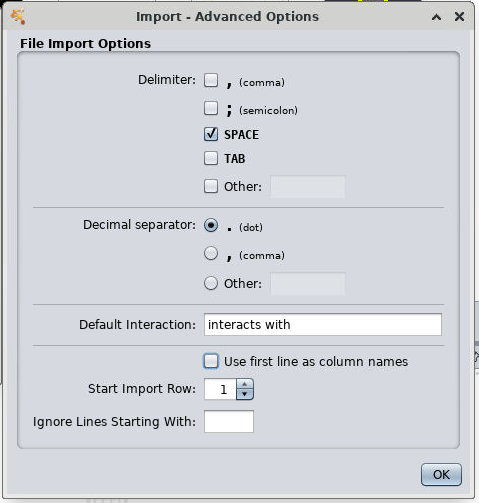

    1. Click on Advanced Options
      1. Select SPACE as the delimiter
      2. Uncheck Use first line as column names
      3. Click OK

    load cytoscape 1

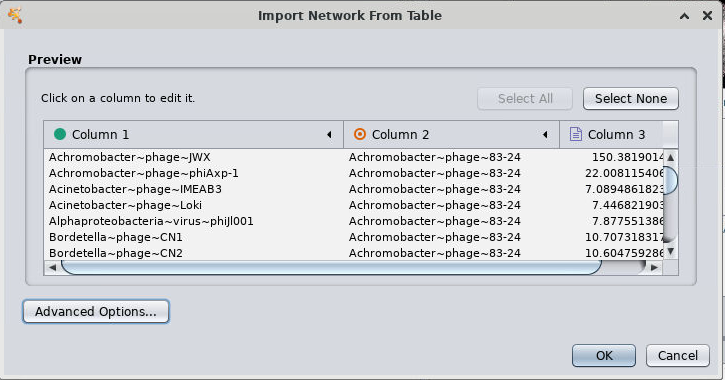

    1. In the drop-down menu for 'Column 1', select the green dot (source node)
    2. For Column 2 select the red target (Target node)
    3. Click OK

    load cytoscape 2

It will now ask if you want to create a view for your large networks now. Click OK. This may take a minute to generate the network visualisation.

Annotate the network

There are many ways to modify and inspect this visualisation. One basic addition that will help us interpret the results here is to colour code the viral genomes based on reference (RefSeq) genomes and the viral contigs recovered from our dataset. We can do this by loading the genome_by_genome_overview.csv file.

Dataset column

For the purposes of this workshop, we have added the additional column Dataset to the genome_by_genome_overview.csv file stating whether each viral sequence originated from either the reference database (RefSeq) or our own data (Our_data). This column is not generated by vConTACT2, but you can open the file in Excel to add any additional columns you would like to colour code the nodes by.

Click File/Import/Table from file and select the genome_by_genome_overview.csv file to open. In the pop-up box, leave the settings as default and click OK. This will add a bunch of metadata to your network table. We can now use this to colour code the nodes in the network.

To colour code the nodes by genome source (Refseq or Our_data):

  1. Click the Style tab on the far left
  2. Select the dropdown arrow by Fill Color
  3. Next to Column click on --select value-- and select Dataset
  4. For Mapping Type, select Discrete Mapping.
  5. Then for each of Refseq and Our_data, click the three dots in the empty box to the right of the label and select a colour for that dataset.

You can now zoom in on the network and select viral contigs from your own dataset, and examine which reference viruses may be the most closely related. This can give an indication of the possible taxonomy of your own viruses based on their gene-sharing relatedness to the known reference genomes.
